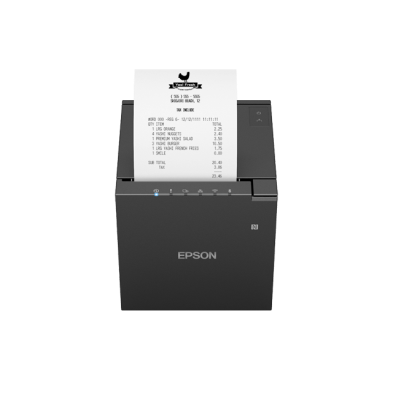

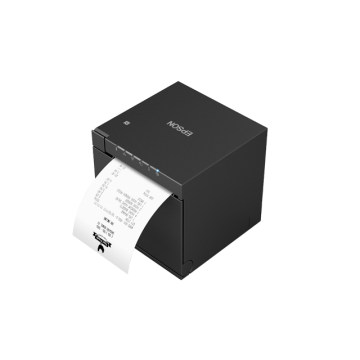

Sleek and compact, ideal for POS receipt printing

The sleek and compact TM-m30III POS receipt printer is ideal for POS receipt printing. It features higher print speeds of up to 300mm/sec.

• Modern and compact design — sleek 3" thermal receipt printer; small size; supports both front and top paper exits
• Fast print speed — quickly produce sharp and crisp text, barcodes and logos; speeds up to 300 mm/sec
• Versatile connectivity — built-in interfaces; USB-A, USB-B, USB-C and Ethernet; optional dual Wi-Fi ®/Bluetooth® interface available

Power:

Power Consumption:

Operation 30.6 W, Standby 1.4 W

Print Fonts:

Character Size:

Font A: 1.25 x 3.00 mm
Font B: 1.13 x 3.00 mm
Font C: 0.88 x 2.13 mm
Kanji Font A: 2.50 mm x 3.00 mm
Kanji Font B: 2.26 mm x 3.00 mm

Character Set:

18 International
95 Alphanumeric
128 x 43 Graphic
Japanese (11,233 characters of JIS X0213:2004, 1 special character)
Simplified Chinese (28,553 characters of GB18030-2000)
Traditional Chinese (13,535 characters of Big5)
Korean (8,224 characters of KSC5601)Fonts:

Font A: 12 x 24 48 cpl (default)
Font B: 10 x 24 57 cpl
Font C: 9 x 17 64 cpl
Kanji Font A: 24 x 24, 24 cpl
Kanji Font B: 20 x 24, 28 cpl (Japanese), 36 cpl (Korean)

Barcode:

Code93
GS1-128
CODABAR(NW-7)
UPC-E
JAN8 / EAN 8
Code39
UPC-A
Code128, Code128 auto
ITF
JAN13 / EAN13
GS1 DataBar

Media Handling:

Width:

79.5mm

Roll Diameter:

3mm maximum, 18mm minimum

Type:

Thermal roll paper

Auto Cutter:

Yes

Paper Loading:

Drop-in

Connectivity:

Standard Connectivity:

Standard Model: USB Type-C, USB Type-B, Ethernet (10/100Base-T/TX), USB Type-A peripheral device port x 2
Wi-Fi + Bluetooth Model: USB Type-C, USB Type-B, Ethernet (10/100Base-T/TX), USB Type-A peripheral device port x 2, Wi-Fi (802.11 a/b/g/n/ac), Bluetooth (5.0 dual mode)

Print Other:

Printing Technology:

Thermal

Print Resolution:

203 dpi

Print Speed:

300 mm/sec

Print Direction:

Vertical and horizontal

General:

Weight:

1.3kg

Temperature:

5° C - 45° C

Humidity:

10 - 90%

Sound Level:

53db

Case Color:

Epson Black
Epson Ultra White

Dimensions:

27 mm x 128 mm x 129 mm (W x D x H )

POS General (POS Details):

Reliability, POS General:

Printer: 17 million printing lines
Auto Cutter: 2.2 million cuts

NV Bit Image Memory:

12KB (max)

Software Drivers:

TM Utility for (iOS/Android)
TM-m30III Utility (Windows Desktop)
Epson TM Bluetooth Connector
EpsonNet Config (Windows, Mac)
Epson Monitoring Tool
Epson Deployment Tool

Audible Alert:

Optional external buzzer

LED Indicators:

Error, Paper, Ethernet, Wi-Fi (built-in), Bluetooth

Model No:

C31CK50502
C31CK50542
C31CK50501
C31CK50541
